문제 : Module

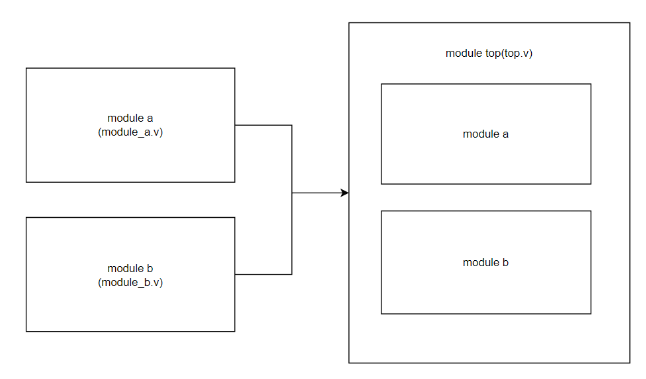

Instantiation-> 인스턴스화

• 이렇게 각 포트를 이어주는 작업을 말함

module a( input wire in_a, output reg out_a );
...
endmodule

module b( input wire in_b, output reg out_b );
...
endmodule

module top_module( input wire x1, input wire x2, output reg y1, output reg y2 );
    //이어줘야 할 top_module
endmodule

• Named - .을 빼먹지 말것
• 더욱 정확하게 쓸 수 있는 룰

module top_module( input wire x1, input wire x2, output reg y1, output reg y2 );
    a u_a( .in_a (x1), .out_a (y1) );
    b u_b( .in_b (x2), .out_b (y2) );
endmodule

• Positional - Port 위치가 바뀌면 연결이 잘못되어 버림
• mod_a나 mod_b의 내부 인자 이름 몰라도 쓸 수있는 룰
• module top_module( input wire x1, input wire x2, output reg y1, output reg y2 ); a u_a( x1,y1 ); b u_b( x2,y2 ); endmodule

답안

module top_module ( input a, input b, output out );
    mod_a instance_name (.out(out), .in1(a), .in2(b));
endmodule











문제 : Connecting Ports by Position

• 이 문제는 Positional Association문제임
• 들어가는 인자는 top_module의 것들이 들어감 / 순서 잘 지켜야 함
• ==근데 mod_a의 내부 인자의 이름을 몰라도 쓸 수 있음==

module top_module (
    input a,
    input b,
    input c,
    input d,
    output out1,
    output out2
);
    mod_a ins1(out1,out2,a,b,c,d);
endmodule











문제 : Connecting Ports by name

• 이 문제는 named Association문제임
• 들어가는 인자는 ==.mod_a인자(top_module인자)== 형식임

module top_module (
    input a,
    input b,
    input c,
    input d,
    output out1,
    output out2
);
    mod_a inst(.in1(a),.in2(b),.in3(c),.in4(d),.out1(out1),.out2(out2));
endmodule

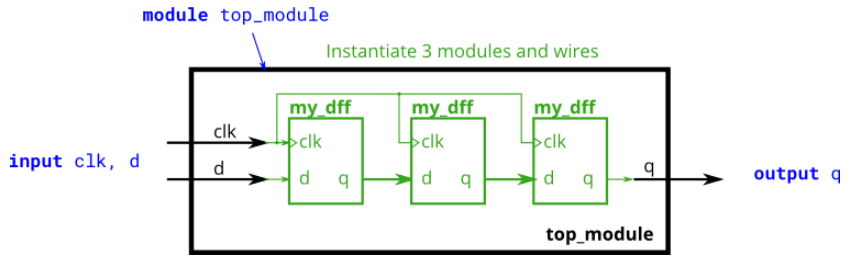

문제 : Three Modules

• wire 생성해서 중간 결과값에 대해 전달 필요함

module top_module ( input clk, input d, output q );
    wire wire1, wire2;
    my_dff ins1(.clk(clk), .d(d), .q(wire1);
    my_dff ins2(.clk(clk), .d(wire1), .q(wire2);
    my_dff ins3(.clk(clk), .d(wire2), .q(q);
endmodule

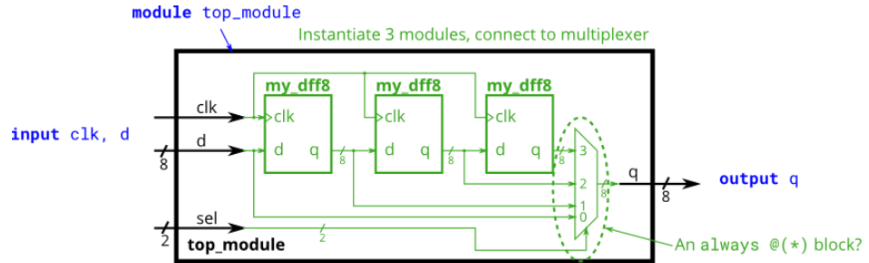

문제 : Module and vectors

• MUX를 처음 다루는 문제



module top_module (
    input clk,
    input [7:0] d,
    input [1:0] sel,
    output [7:0] q
);
    wire [7:0] w1;
    wire [7:0] w2;
    wire [7:0] w3;
    wire [7:0] F;

    // Correctly instantiate my_dff8 modules using named port connections
    my_dff8 ins1 (.clk(clk), .d(d), .q(w1));
    my_dff8 ins2 (.clk(clk), .d(w1), .q(w2));
    my_dff8 ins3 (.clk(clk), .d(w2), .q(w3));

    // Correct case statement
    always @ (*) begin
        if(sel == 2'b00) begin
            F = d;
        end else if (sel == 2'b01) begin
            F = w1;
        end else if (sel == 2'b10) begin
            F = w2;
        end else if (sel == 2'b11) begin
            F = w3;
        end
    end
    /*이것도 가능함
     always @ (sel, F, w1, w2, w3, d) begin
        case (sel)
            2'b00 : F = d;
            2'b01 : F = w1;
            2'b10 : F = w2;
            2'b11 : F = w3;
        endcase
    end
    */

    assign q = F;
endmodule

module top_module (
    input clk,
    input [7:0] d,
    input [1:0] sel,
    output reg [7:0] q
);

    wire [7:0] o1, o2, o3;        // output of each my_dff8

    // Instantiate three my_dff8s
    my_dff8 d1 ( clk, d, o1 );
    my_dff8 d2 ( clk, o1, o2 );
    my_dff8 d3 ( clk, o2, o3 );

    // This is one way to make a 4-to-1 multiplexer
    always @(*)        // Combinational always block
        case(sel)
            2'h0: q = d;
            2'h1: q = o1;
            2'h2: q = o2;
            2'h3: q = o3;
        endcase

endmodule

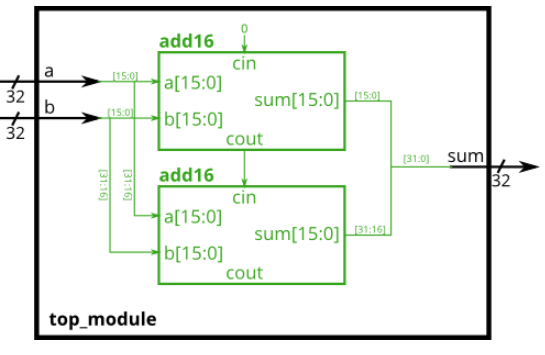

문제 : Adder1

• 동일한 입력이 들어갈 수 없음 - .cin(carry), .cout(carry)불가능



module top_module(
    input [31:0] a,
    input [31:0] b,
    output [31:0] sum
);
    wire carry, unused_count;
    wire [15:0] r1, r2;
    add16 ins1 (.a(a[15:0]), .b(b[15:0]), .sum(r1), .cin(0), .cout(carry));
    add16 ins2 (.a(a[31:16]), .b(b[31:16]), .sum(r2), .cin(carry), .cout(unused_count));
    assign sum = {r2, r1};
endmodule

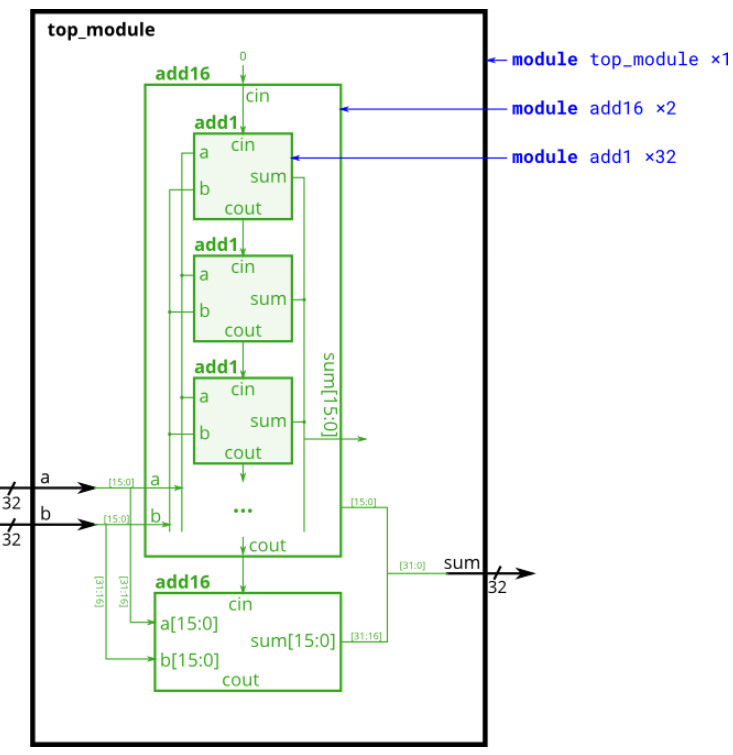

문제 : Module Fadd(Adder2)

module top_module (
    input [31:0] a,
    input [31:0] b,
    output [31:0] sum
);//
    wire [15:0] r1, r2;
    wire carry;
    add16 ins1(.a(a[15:0]), .b(b[15:0]), .cin(0), .cout(carry), .sum(r1));
    add16 ins2(.a(a[31:16]), .b(b[31:16]), .cin(carry), .cout(), .sum(r2));
    assign sum = {r2,r1};
endmodule

module add1 ( input a, input b, input cin,   output sum, output cout );

// Full adder module here
    assign sum = a^b^cin;
    assign cout = (a&b)|(a&cin)|(b&cin);
endmodule

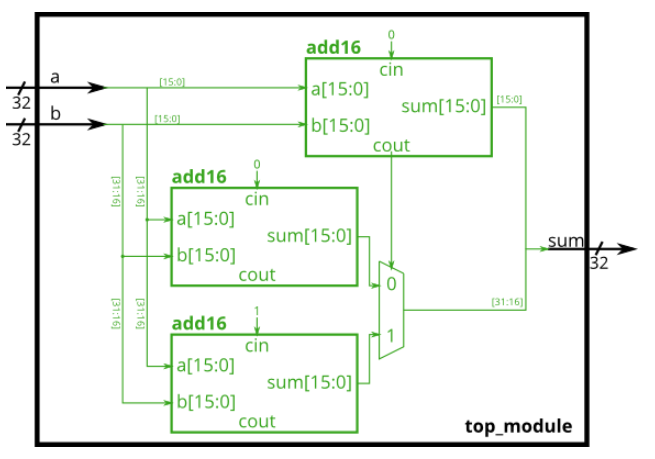

문제 : carry select adder

module top_module(
    input [31:0] a,
    input [31:0] b,
    output [31:0] sum
);
    wire [15:0] r1, r2_0, r2_1, r2;
    wire sig, unused_count;

    add16 ins1(.a(a[15:0]) ,.b(b[15:0]) ,.cin(0), .cout(sig), .sum(r1));
    add16 ins2(.a(a[31:16]) ,.b(b[31:16]) ,.cin(0), .cout(unused_count), .sum(r2_0));
    add16 ins3(.a(a[31:16]) ,.b(b[31:16]) ,.cin(1), .cout(unused_count), .sum(r2_1));

    assign r2 = sig? r2_1 : r2_0;
    assign sum = {r2,r1};
endmodule

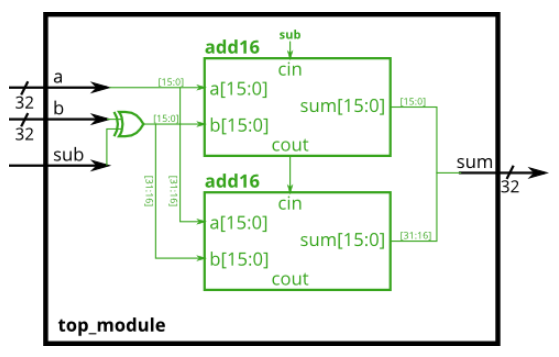

문제 : Adder subtractor

module top_module(
    input [31:0] a,
    input [31:0] b,
    input sub,
    output [31:0] sum
);
    wire carry, unused;
    wire [15:0] r1, r2;
    wire [31:0] temp;
    assign temp = b ^ {32{sub}};
    add16 ins1 (.a(a[15:0]), .b(temp[15:0]), .cin(sub), .cout(carry), .sum(r1));
    add16 ins2 (.a(a[31:16]), .b(temp[31:16]), .cin(carry), .cout(unused), .sum(r2));
    assign sum = {r2, r1};
endmodule
